Wine Cellar Cooling Cabinet Cooling Series Page – Processed Video Transcription



Wine Cabinets Cooling Systems Series by US Cellar Systems
.

Wine Cabinets Cooling System Series from US Cellar Systems

CC Series Wine Cabinets Cooling System

This is Dan Phillips of US Cellar Wine Cabinets Cooling Systems.  Today we are going to talk about our CC Series Wine Cabinets Cooling Systems which was specifically designed for the single deep wine cabinets that extend the length of a wall for a wine cellar.

It is also an ideal unit for commercial type applications where you need a fast recovery time since this is the only unit we use that uses a standard thermal expansion valve which will give you the fast recovery unit necessary in a cabinet that gets high volume use.

By using multiple evaporator coils with this wine cabinets cooling system, we are capable of covering BTU loads from 18,000 BTUs all the way to 86,000 BTUs.  The ideal installation for this unit is to install it in the center of the cabinet.  It must be uptight against the ceiling and mounted against the back wall as the ceiling and back wall form the top and back of this particular evaporator coil.

Installed this way with racking coming up to within two inches at the bottom of the coil, it draws the air in the front and then it is capable of blowing air out up to 10 feet going both to the left and right, so you get excellent air circulation throughout the entire cabinet.

This unit, when properly installed in a properly constructed and insulated wine cellar, will work ideally for the single deep application.

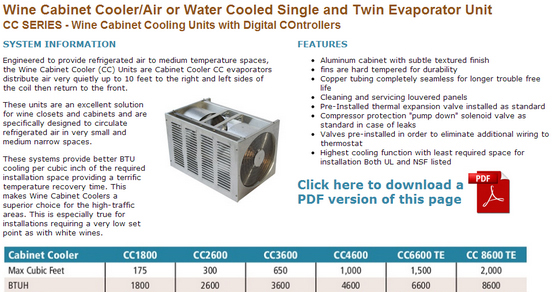

Wine Cabinets Cooling Systems - CC Series Product Specifications

Wine Cabinets Cooling Systems – CC Series Product Specifications

As you can see, we offer four different vapor sizes and with these four different sizes each one with a different BTU capacity, we are capable, as stated before, of covering from 18,000 BTUs up to 86,000 BTUs by using two of the largest evaporator coils.

This allows you to cover larger areas or for those high capacity systems where you have a lot of glass and you need a larger amount of cooling for a small volume because of the low insulation quality of the glass.

For inquiries regarding our CC Series Wine Cabinets Cooling Systems, just contact US Cellar Systems. View the contact details here.
